Colorbond Fence Panel with 300mm SLAT Inserts
Colorbond Fence Panel with Slat Inserts.
New 2025 design · no gap · more privacy

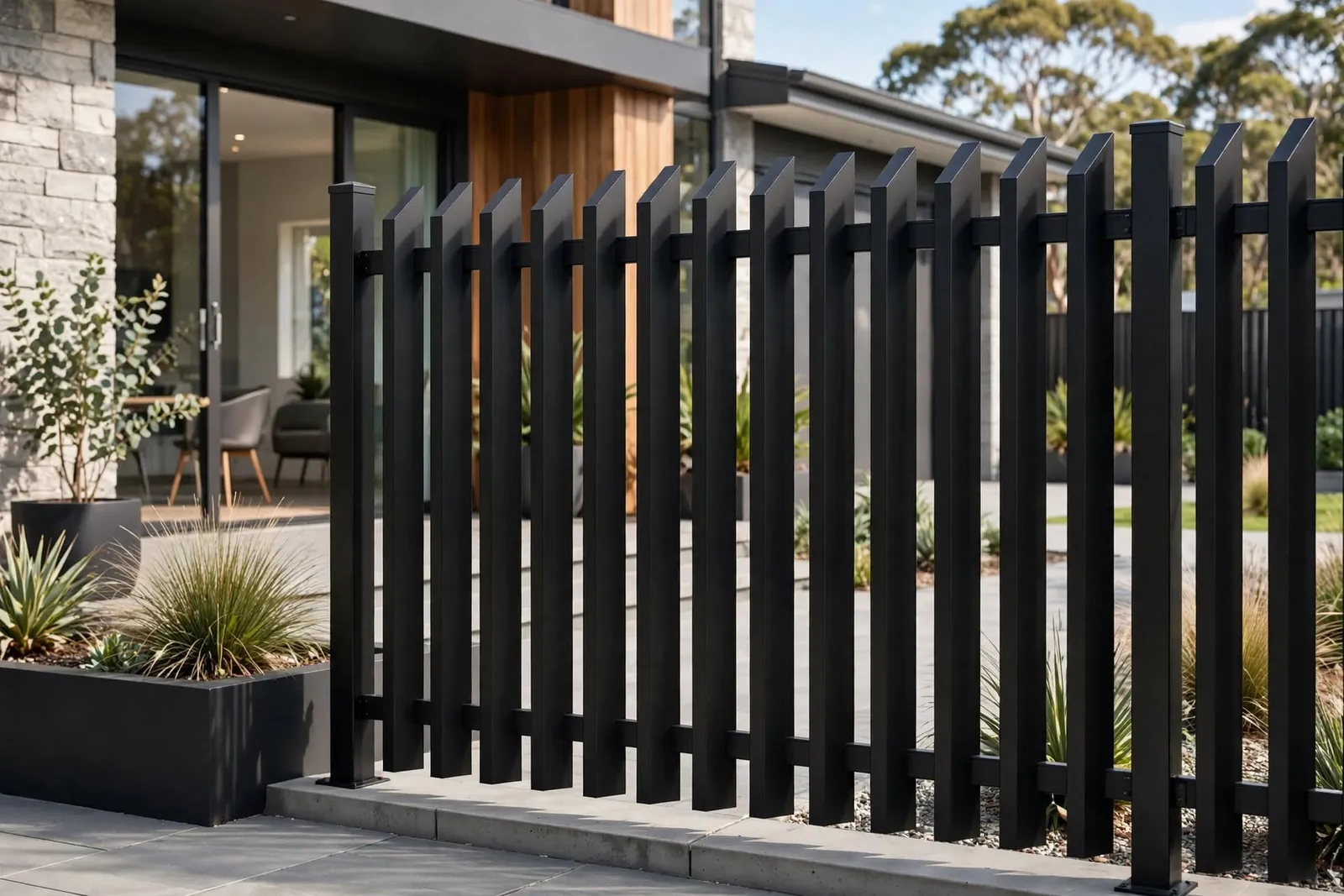

Aluminium 45° angled blade fencing
Architecturally designed to elevate your home – the 2025 upgraded blade panel with a larger slat, a ~6 mm overlap and no visible gap. Fences and matching gates, supplied as kits or installed across Sydney.
The Aluminium 45° Angled Blade Panel is the upgraded blade design: 78 × 13 mm slats set at 45 degrees with a ~6 mm overlap, so the face reads as solid rather than gapped. It is powder-coated aluminium – more privacy than a 50 mm or 65 mm open blade, with the same clean vertical line.
Panels are 2400 mm wide in 600 mm, 900 mm, 1.2 m, 1.5 m and 1.8 m heights, with 40 × 40 mm rails 100 mm from the top and bottom. See the product listing to enquire, or compare with our 50 mm and 65 mm blade panels.
45° angled blade and related blade panels
Why the 45° overlap

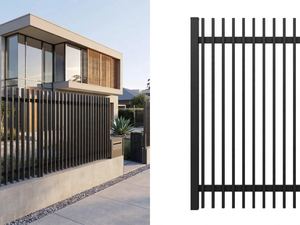

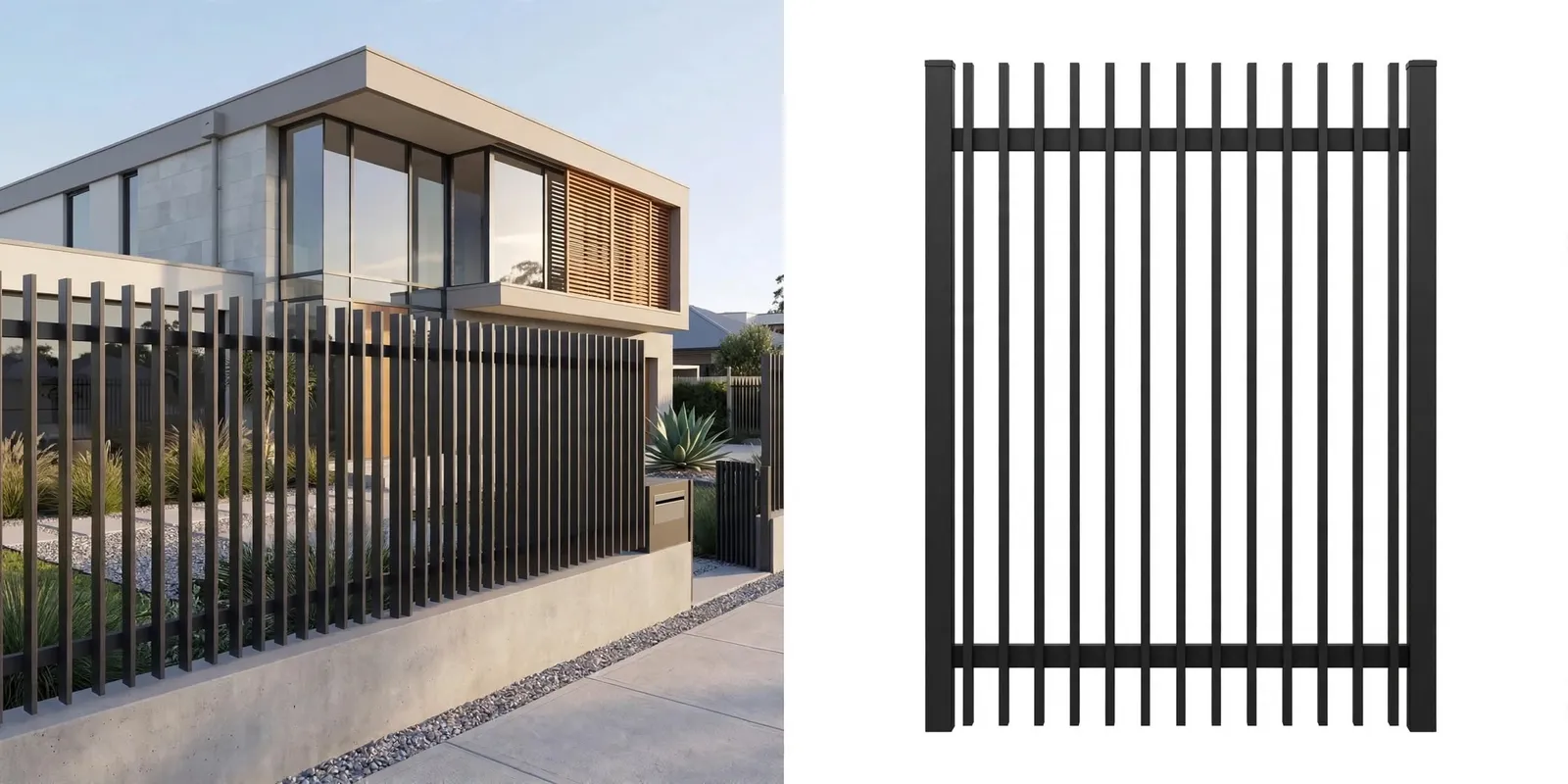

A standard 50 mm blade has a 60 mm gap; a 65 mm blade has a 40 mm gap. The 45° panel turns a larger 78 × 13 mm slat on an angle and overlaps it by about 6 mm, so you do not see through the fence. That is the privacy upgrade – useful on a front boundary or side screen where an open blade would show too much.
Heights
Choose 600 mm, 900 mm, 1.2 m, 1.5 m or 1.8 m × 2400 mm wide. Lower panels suit wall toppers and pool-equipment screens; 1.5 m and 1.8 m are typical boundary heights.
Gates and installation
- Matching pedestrian, double and sliding gates on the same slat and overlap.
- Posts and rails as for our other aluminium blade fences; slopes are stepped so the slats stay consistent.
- Supply-only kits Australia-wide, or we install across Sydney after a free site measure.
45° angled blade and related blade / slat products
Slat Fence Extension Kit – 300 mm
Complete DIY kit to add 300 mm to one Colorbond fence panel with a horizontal aluminium slat insert – a clean,…
Slat Fence Extension Kit – 300 mm
Complete DIY kit to add 300 mm to one Colorbond fence panel with a horizontal aluminium slat insert – a clean,…

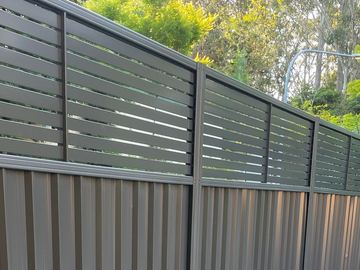

Slat Fence Extension Kit – 600 mm
Complete DIY kit to add 600 mm to one Colorbond fence panel with a horizontal aluminium slat insert.
Slat Fence Extension Kit – 600 mm
Complete DIY kit to add 600 mm to one Colorbond fence panel with a horizontal aluminium slat insert.
Slat Fence Extension Insert
Aluminium horizontal slat insert only – for replacing an insert or building your own extension. Rails and post…
Slat Gate Kit
Aluminium Horizontal Slat Single Gate.
Slat Sliding Gate
Fabricated aluminium horizontal slat sliding gate, made to your opening. Sliding gates suit driveways where th…
Common questions
How is the 45° angled blade different from standard blade fencing?
Standard 50 mm and 65 mm blade panels have a set gap between the slats (60 mm or 40 mm). The 45° angled blade uses 78 × 13 mm slats set at an angle with a ~6 mm overlap, so there is no visible gap. It is the upgraded 2025 design for more privacy.
What heights and widths are available?
Panels are 2400 mm wide in 600 mm, 900 mm, 1.2 m, 1.5 m and 1.8 m heights.
What is it made of?
Aluminium, powder-coated. Rails are 40 × 40 mm, 100 mm from the top and bottom.
Can I have a matching gate?
Yes – pedestrian, double and sliding gates can be built on the same 45° angled blade so the line runs through.
Supply only?
Yes – panels, posts and fixings as a kit Australia-wide, or fully installed across Sydney after a free site measure.
