Lattice Fence Extensions Sydney – 300 mm & 600 mm

A lattice extension kit contains two C-post extensions matched to your existing post profile, a 50 mm rail, a diamond-stamped Colorbond steel lattice insert (300 mm or 600 mm high) and colour-matched screws. One kit extends one panel – standard 2.36 m or extended 3.1 m.

Because the lattice is steel rather than timber, it stays straight, does not rot and matches the fence colour exactly. The frame and lattice can be different colours at no extra cost – cream lattice on a Monument frame is a common pairing.

Lattice suits older and period homes and situations where you want some height without a solid wall look. For more privacy choose louvres or solid sheet.

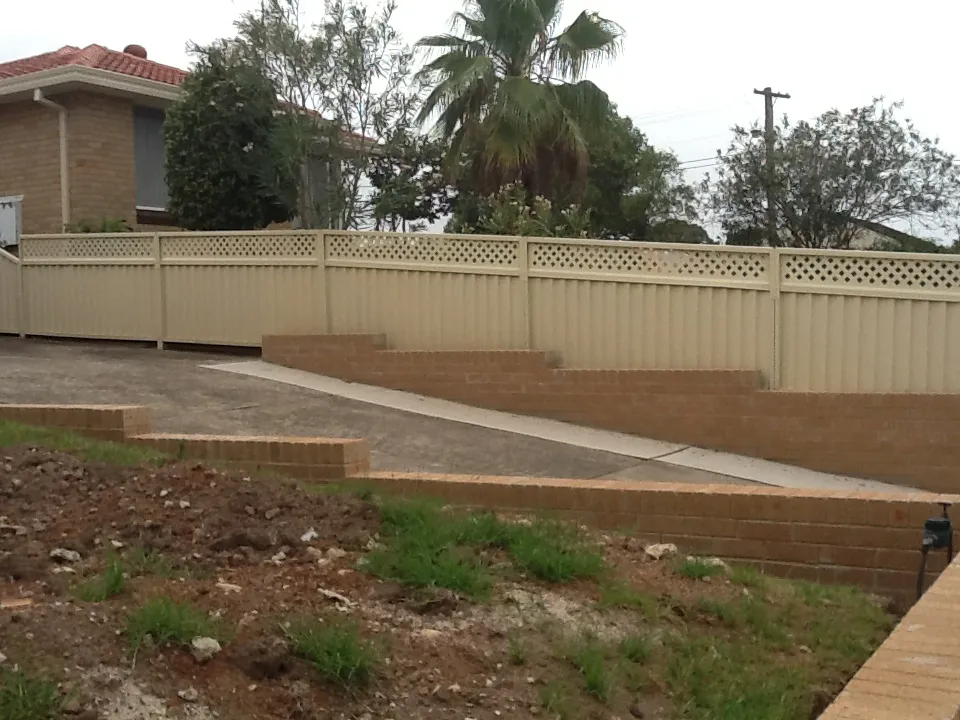

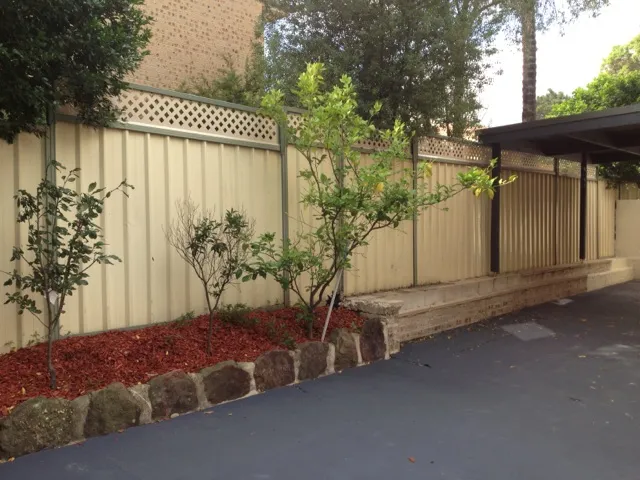

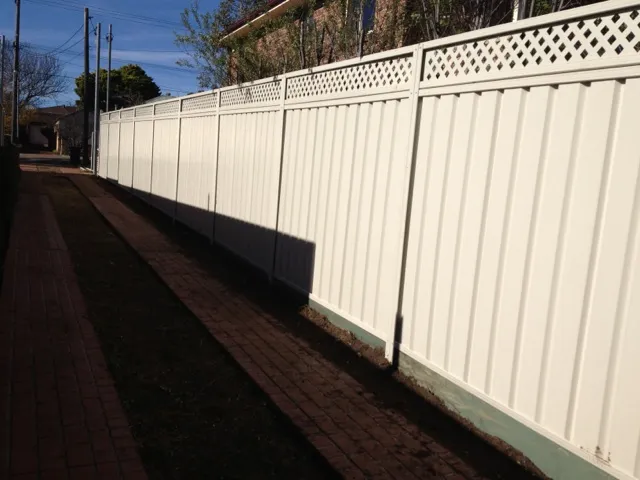

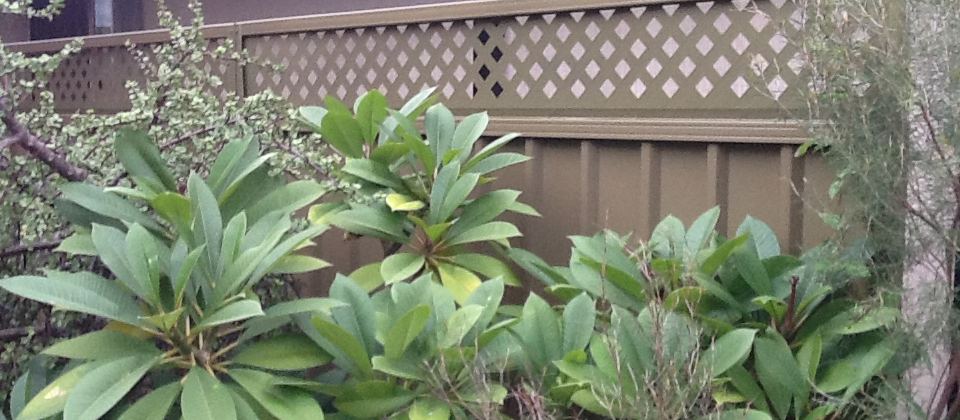

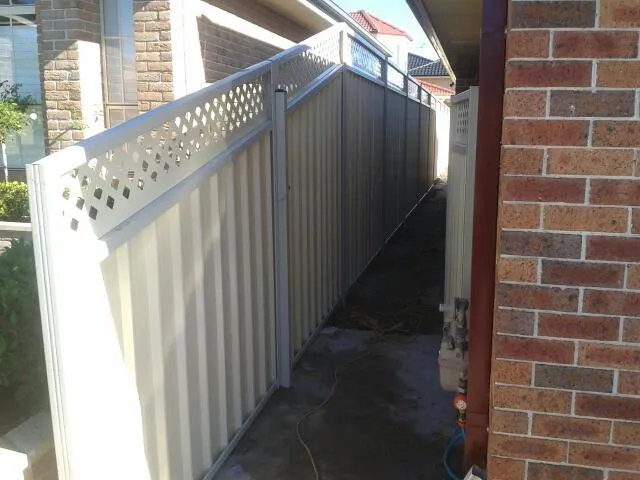

Lattice extensions and lattice-top fences we have installed

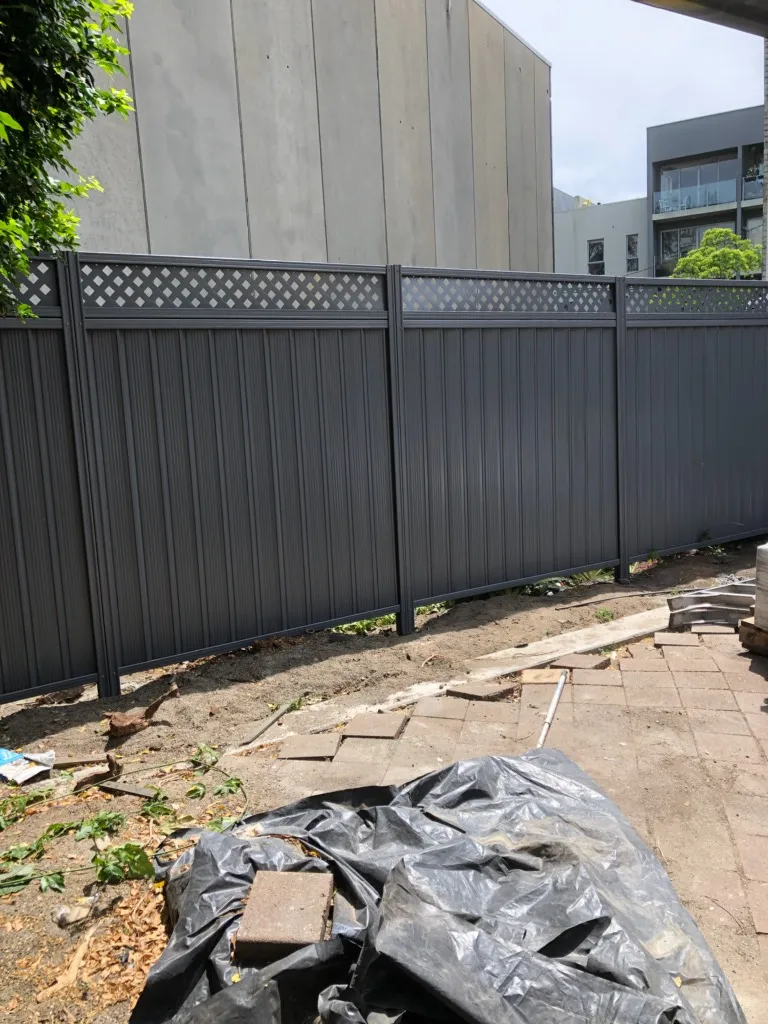

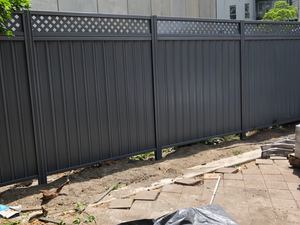

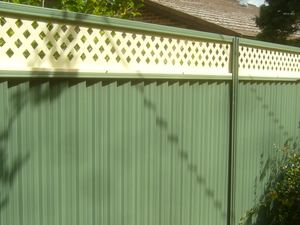

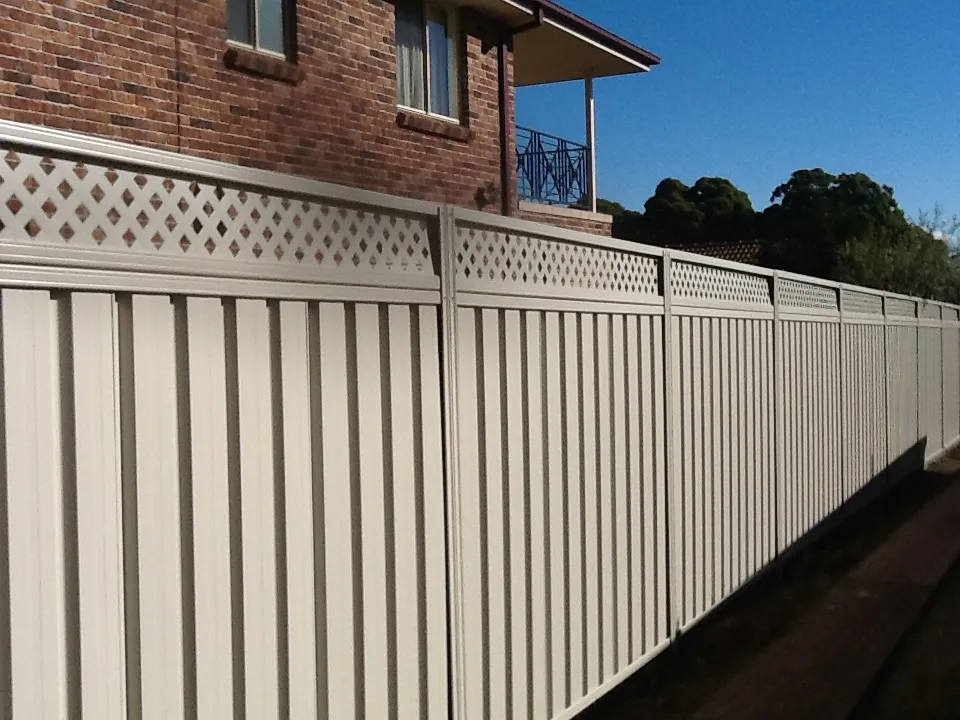

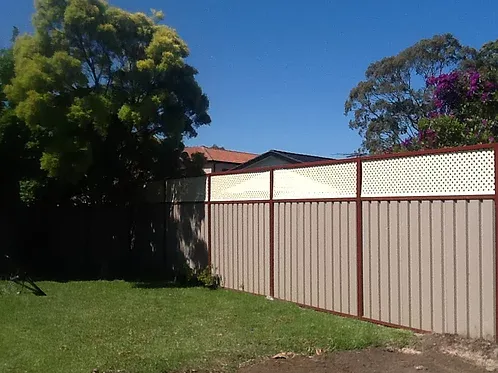

Colorbond Lattice Top Fencing — Colorbond Fence with 300mm Lattice

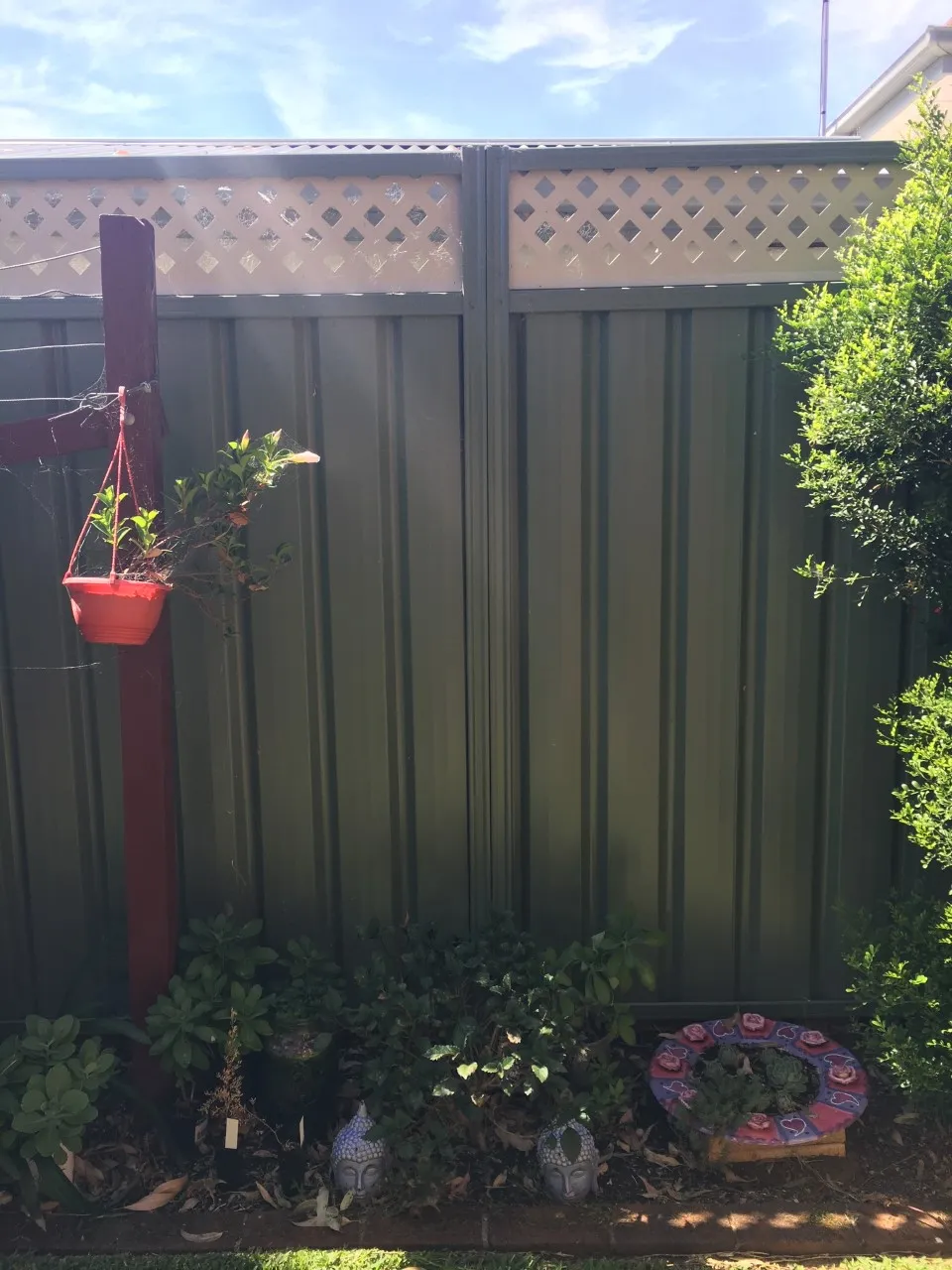

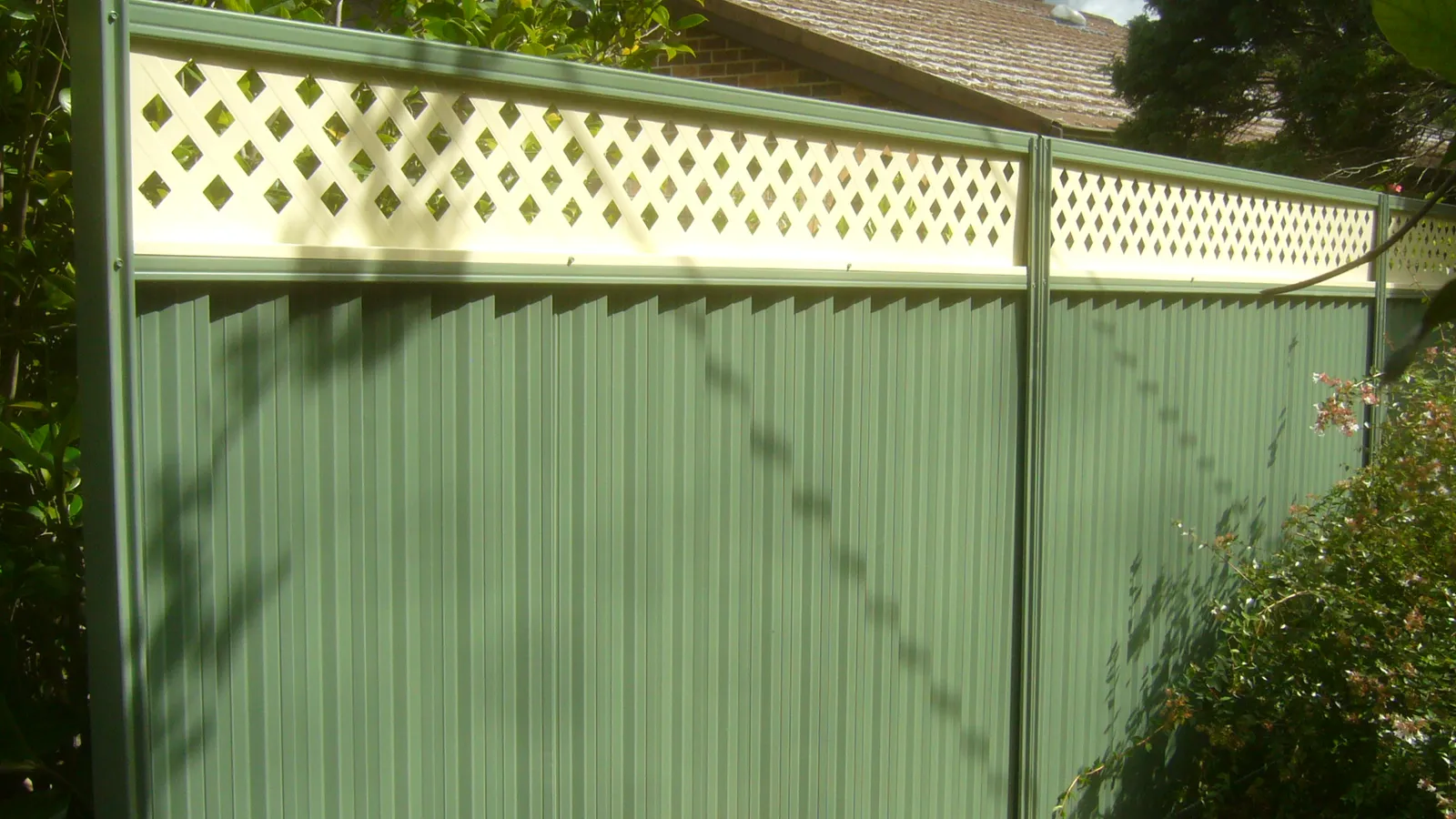

Primrose Colorbond Fence Extension — 300mm Lattice Colorbond Extension

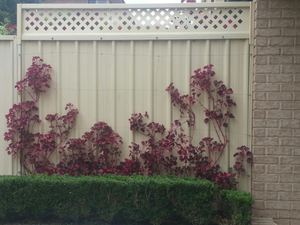

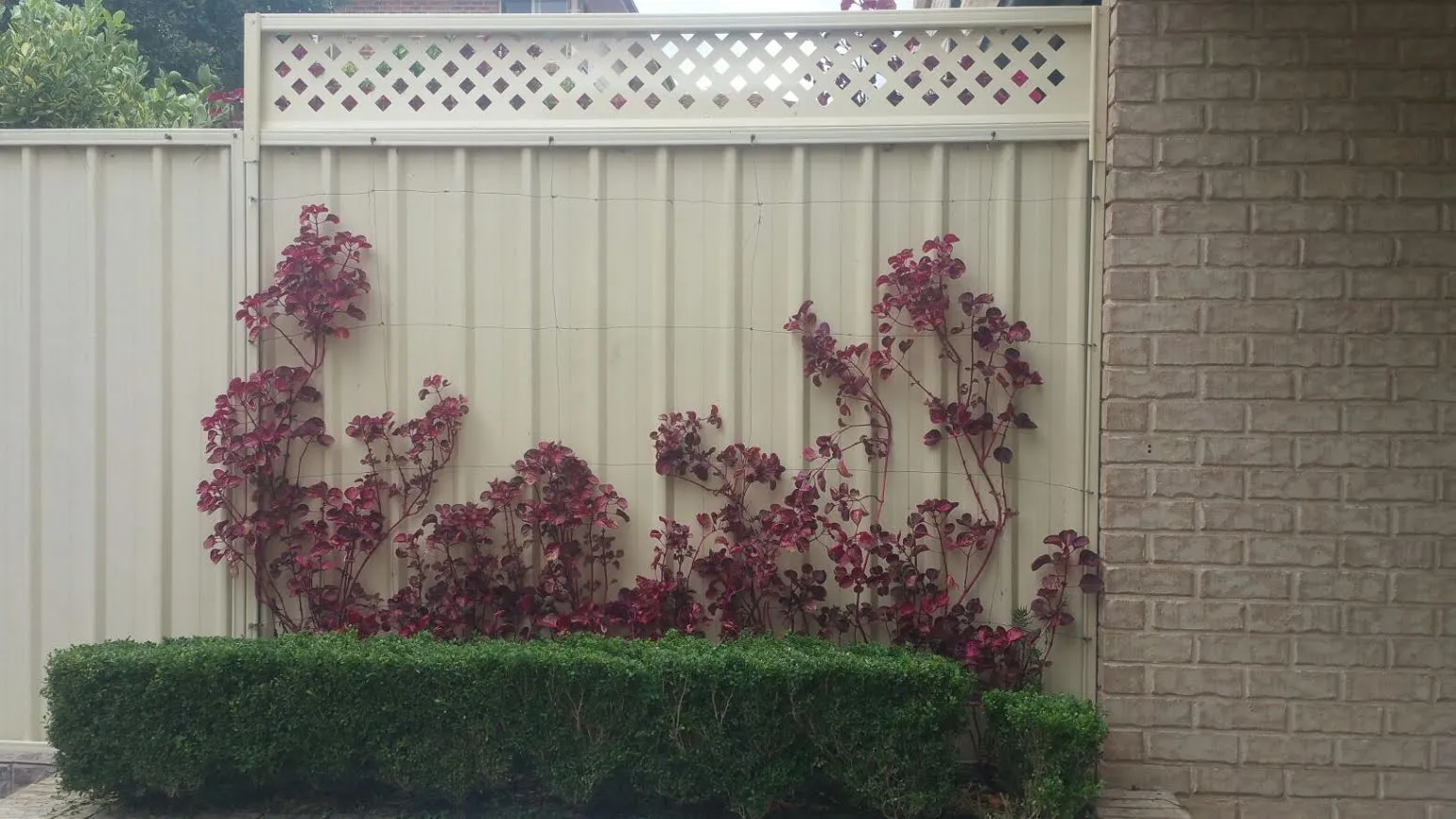

Fence Extension with Lattice — Cream Lattice Fence Extension Supplier

Compatibility – what we check first

Post profile must match. Colorbond C-posts come in three profiles – Lysaght, Slimline and Standard (double-ribbed). The extension post slides over or fixes to the existing post and has to be the same profile. Look at the top of a post or send us a photo.
Posts and footings must be sound. An extension adds height, weight and wind load. If posts are loose, rusted at ground level or the concrete has cracked, extending is not the right fix – we will tell you and quote a repair or replacement instead.
Total height may need approval. A 1.8 m fence extended by 300 mm becomes 2.1 m, and by 600 mm becomes 2.4 m. Fences over 1.8 m generally need council approval in NSW; heritage-listed properties always do. Check with your council before you order.
Shared boundary? An extension changes your neighbour's side too. Talk to them first – under the Dividing Fences Act you generally cannot compel a neighbour to pay for a fence higher than a 'sufficient' dividing fence, so extensions are usually paid for by the person who wants them.
Not every fence suits every extension. Louvre and slat inserts are lighter than solid sheet; a 600 mm solid sheet extension on a long, exposed run adds significant wind load. We assess this on site.

Matching gates

If you extend the fence, the gate usually needs to match. We build Colorbond gates with a 300 mm lattice top for single and double openings.

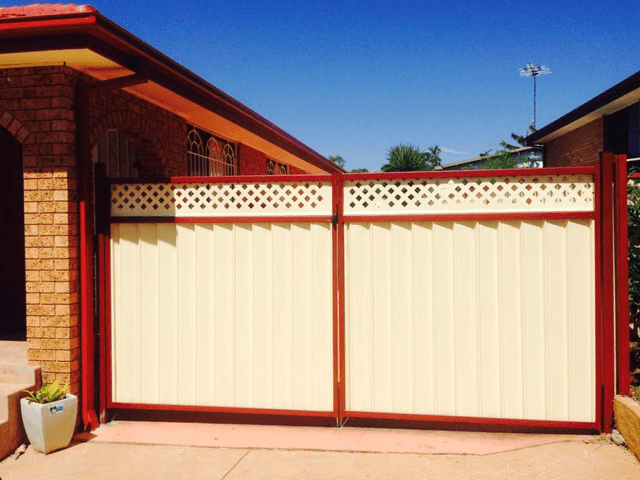

Colorbond double gate with lattice toppers

Lattice extension kits and inserts (supply only)

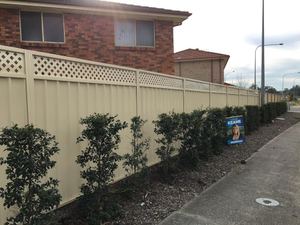

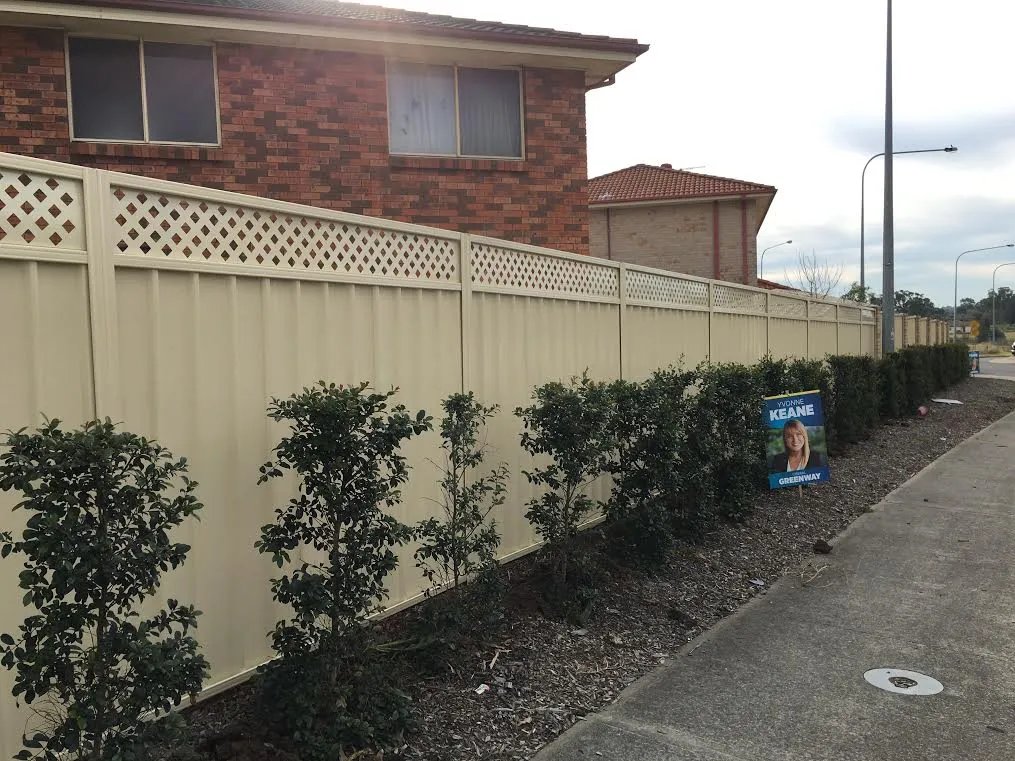

Colorbond Fence Panel with 300mm LATTICE Inserts

Colorbond Fence Panel with Lattice Inserts.

Lattice Height Extension Panels @ 300mm (H) – Slimline & Standard posts

Colorbond Fence Lattice Height Extension Panels.

Lattice Height Extension Panels @ 300mm (H) – Lysaght, Slimline & Standard posts

Colorbond Fence Diamond Stamped Steel Lattice Height Extension Panel.

Lattice Height Extension Panels @ 600mm (H) – Slimline & Standard posts

Colorbond Fence Lattice Height Extension Panels.

Lattice Height Extension Panels @ 600mm (H) – Lysaght, Slimline & Standard posts, delivery option

Colorbond Fence Diamond Stamped Steel Lattice Height Extension Panel.

Lattice Fence Insert 300mm or 600mm

Diamond Stamped Colorbond Fence Lattice Inserts.

Common questions

Will an extension fit my fence?

If your fence is Colorbond with sound posts and footings and you know the post profile (Lysaght, Slimline or Standard), almost certainly. Send a photo of a post top and the number of panels and we will confirm before anything is ordered.

300 mm or 600 mm?

300 mm is the most common – it takes a 1.8 m fence to 2.1 m, enough to block a neighbour's window or deck line. 600 mm takes it to 2.4 m, the maximum we build, and is usually reserved for privacy from two-storey homes. Both heights normally need council approval.

Do I need council approval?

In most NSW councils a boundary fence over 1.8 m needs approval, so most extensions do. Some councils allow slightly higher fences as exempt development in certain circumstances – check your council's rules or ask us what we have seen in your area. We do not guarantee that an extension is permissible at any given property.

Can I extend a timber fence?

Our extension kits are designed for Colorbond C-posts. Timber fences are usually better replaced, or we can quote a new Colorbond fence with an insert top.

How long do custom extension panels take?

Generally one to two weeks from ordering the material. Primrose and Woodland Grey louvres are stocked colours.

What is in a kit?

Two C-post extensions, one rail, one insert (louvre, lattice, slat or sheet) and a bag of colour-matched tek screws – one kit per existing panel.
